12 Pin Deutsch DT Automotive Oscilloscope Diagnostics Breakout Lead
Connector Part Number: DT06-12SA-CE05 / DT04-12PA
This 12 pin Deutsch Automotive Connector breakout lead is part of our range of automotive connector breakout leads and is designed to connect to Deutsch connectors commonly found on commercial vehicles - (HGV trucks), plant and agriculture vehicles. The lead allows technicians to connect to the vehicles connectors and conduct diagnostic voltage and current measurements without the need to back pin or damaging the connector's moisture seal.

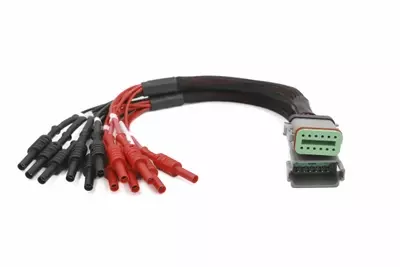

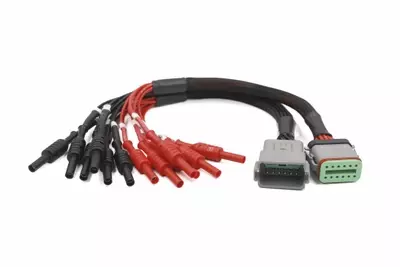

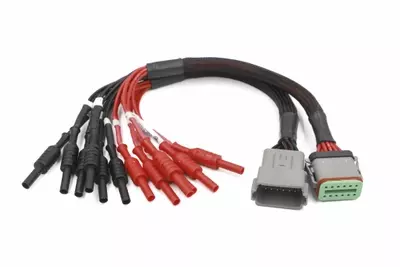

The lead includes Deutsch DT06-12SA-CE05 male and Deutsch DT04-12PA Female automotive connectors on an single harness.
The output signals from the breakout lead banana plugs can be connected via a BNC to 4mm Banana Plugs Patch Lead to handheld or PC based oscilloscopes from; PicoScope, Hantek, Uni-T, TiePie, CarScope, Autel MaxiScope, Sealey, Bosch, Snap-On, Fluke.
The individual wire connections are colour coded for easy identification and designed to allow easy access with a current (Amp) clamp so that wires can be tested in-circuit allowing both current and voltage measurements to be taken simultaneously.
All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors. This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Our WACB automotive breakout leads use the following colour code convention:
This Breakout is made using 9012 1mm2 PVC Cable.
Red pins 1-6, black 7-12.
