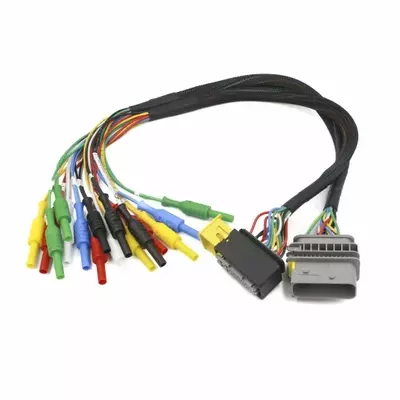

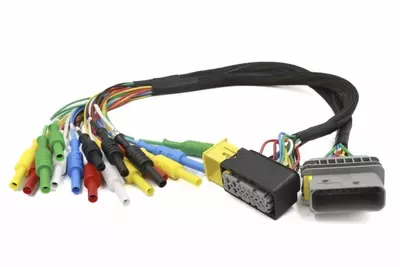

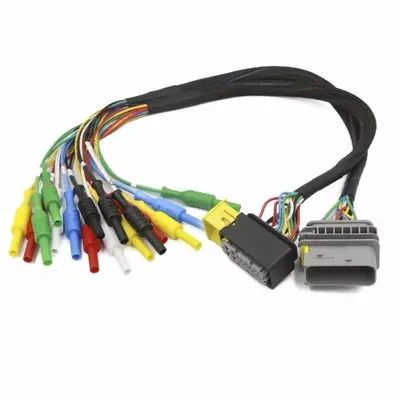

WACB-GTV-16HDS-03 16 Way HDSCS Code 2 Breakout Lead
Connector Part Numbers: 2-1564337-1 / 2-1564528-1
The 16 Way TE HDSCS breakout lead has been designed to connect quickly and reliably to 16 way TE HDSCS Code 2 (Grey) automotive connectors to diagnose signals commonly found on agricultural, industrial and commercial vehicles such as plant, tractors and trucks. The breakout lead features both female, 2-1564337-1, and male, 2-1564528-1 connectors.
Prevent damage to the vehicles' sensors and connectors often caused by back-pin probing. Conduct voltage, current readings and insulation tests on various sensors, actuators and components with new found ease.
The WACB-GTV-16HDS-03 breakout lead features 4mm banana plug sockets that can be used with a Digital Multimeter, Insulation test meter or Oscilloscope with the use of BNC to 4mm Banana Plug Patch Leads.
Reliable readings start with the point of connection. Ensure your findings are accurate and prevent mis-diagnosis with reliable breakouts that are purpose built for the workshop.
