Winslow Adaptics W9196 Surface-Mount PLCC Plug - 84 Pin
(Image representative of range)
The W9196 PLCC Plug has 84 PLCC pins. These connectors feature a Butt-Jointing Surface-Mount PLCC footprint.
Pin Length Variations
W9196-ZC154 - 16.5mm
W9196-ZC155 - 15.2mm
W9196-ZC156 - 10.8mm
W9196-ZC163 - 21.6mm

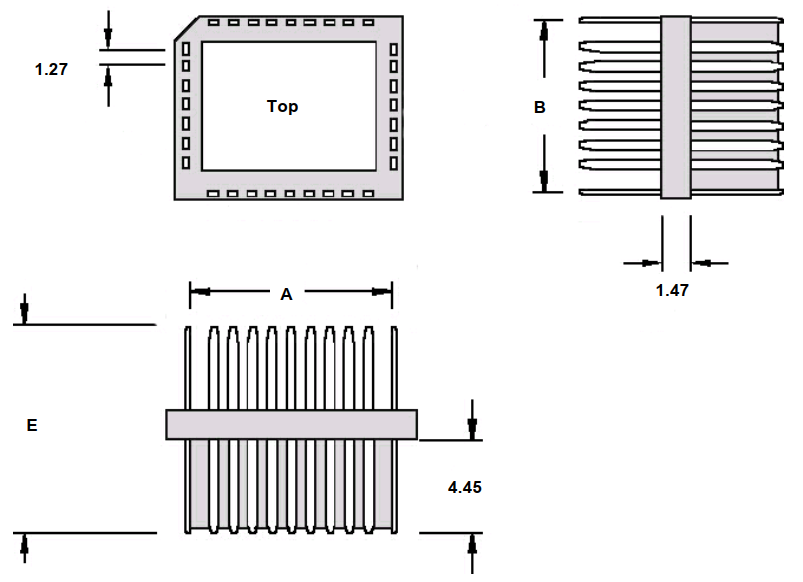

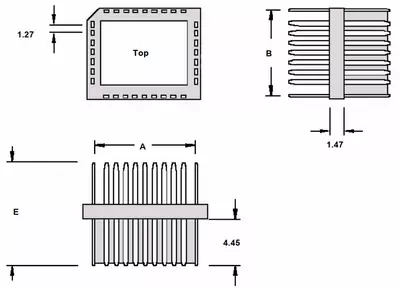

Specification
Gender: Male
Number of contacts: 84
Body Orientation: Butt-Jointing Surface-Mount Plugs
Pitch Spacing: 1.27
'A' Length: 28.9mm
'B' Length: 28.9mm
