Winslow Adaptics W9193 Surface-Mount PLCC Plug - 44 Pin

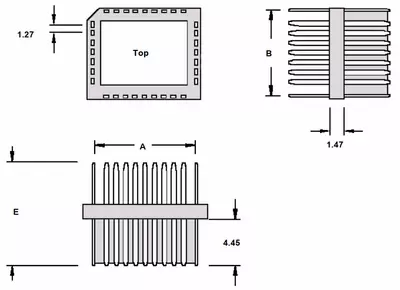

(Image representative of range)
The W9193 PLCC Plug has 44 PLCC pins. These connectors feature a Butt-Jointing Surface-Mount PLCC footprint.
Pin Length Variations
W9193-ZC154 - 16.5mm
W9193-ZC155 - 15.2mm
W9193-ZC156 - 10.8mm
W9193-ZC163 - 21.6mm
Specification
Gender: Male
Number of contacts: 44
Body Orientation: Butt-Jointing Surface-Mount Plugs
Pitch Spacing: 1.27

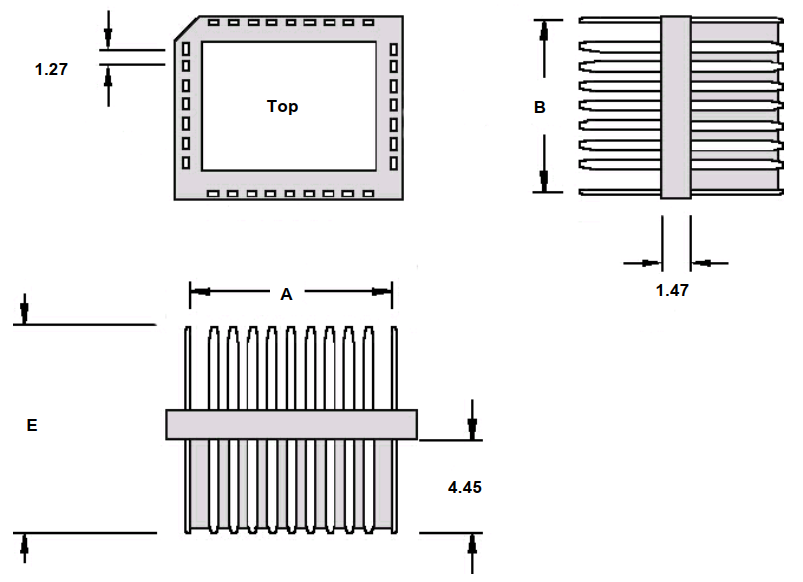

'A' Length: 16.4mm
'B' Length: 16.4mm
