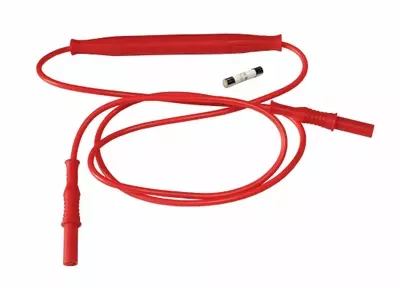

15330-IEC-0A5 Fused 0.5A 4mm Straight Shrouded Banana Plug Silicone Lead
This fused lead consists of 12A 0.75mm2 Silicone cable with an inline fuse holder and straight shrouded 4mm Banana plugs on each end. Supplied with a 1000V 0.5A (500mA) FF 6.3 x 32mm 6.3mm fuse.
The fuse can be easily replaced by unscrewing the inline fuse holder.
- Rated voltage : 1000 V CAT III
- Fuse: 0.5A 1000V 50kA 6.3mm x 32mm IP2X according to EN / IEC 60529.
- Rated current : 0,75mm² / 12A 1,00mm² / 20A 1,50mm² / 25A 2,50mm² / 36A
- Insulation material : PP
- Contact parts: Brass and CuBe / Ni coated

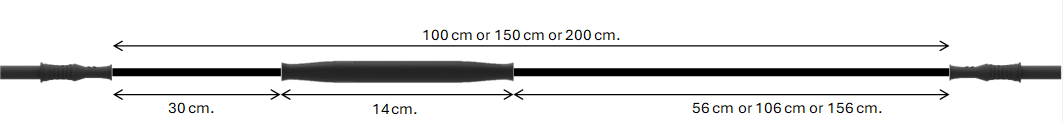

Variable lengths, colours, Max Amps 20-36A, and alternative fuses available, please contact us for a quote.
