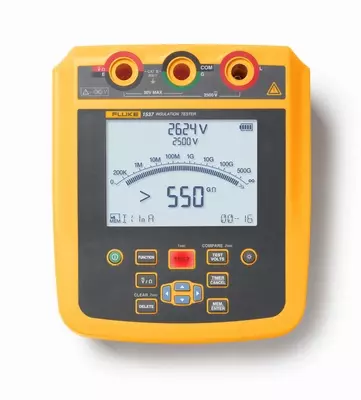

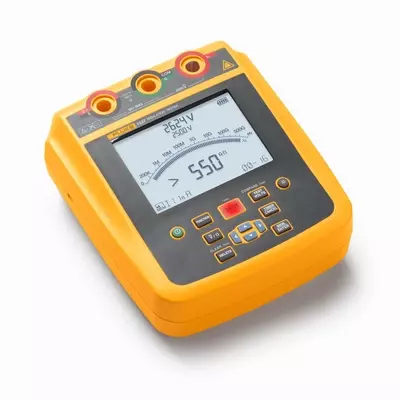

Fluke 1537 Insulation Tester
The Fluke 1537 is engineered to simplify frontline Insulation Resistance testing. User selectable test voltages from 250V to 2500V and resistance measurements up to 500GΩ this tester allows you to cover more workload with a single tool. Equiped with a highly intuitive user interface, a short circuit current of 5mA and a CAT IV 600V rating this portable insulation tester enables rapid and stable resistance measurements regardless of where you operate with them.

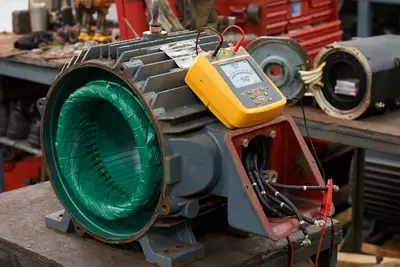

Ideal for frontline technicians, electricians, and contractors, who are doing asset maintenance jobs with field equipment such as motors, transformers, power cabinets etc.
Features:
- Selectable Voltage Tests - 250V, 500V, 1000V, 2500V.
- Up to 500GΩ insulation resistance measurement.
- Automatically calculate Polarisation Index (PI) and Dielectric Absorbsion Ration (DAR).
- High measurement capacity - conduct up to 1300 measurements at 2500V or 6500 measurements at 250V.
- CAT IV 600V rating.
- Store measurements for later review and/or PC transfer using the provided software.
- ACV/ DCV/ Resistance measurement 0 V - 600 V.
Specification:
- Insulation Testing @ 250V, 500V, 1000V and 2500V. See datasheet for ranges, resolution and accuracy figures.
- Insulation test voltage accuracy: -0 %, +10 % @ 1 mA load current
- Charging rate for capacitive load: 5 s/μF
- Discharging rate for capacitive load: 1.5 s/μF
- Leakage current measurement: Resolution - 1 nA to 2 mA, Accuracy — ±(20 % + 2 nA)
- Capacitance measurement: Resolution - 0.01 μF to 2.00 μF, Accuracy — ±(15 % rdg + 0.03 μF)
- Short circuit current - >2 mA
- VAC 0-600 V: Resolution - 0.1V, Accuracy - ±(2 % +10) 45 Hz to 500 Hz
- VDC 0 V to 600.0 V: Resolution - 0.1 V, Accuracy - ±(2 % +10)
- Timer: 0-99min
Included accessories:
Test leads with alligator clips (red, black, green)
Probe (red, black)
Soft carrying case
USB cable
Fluke software - download from Fluke website.
