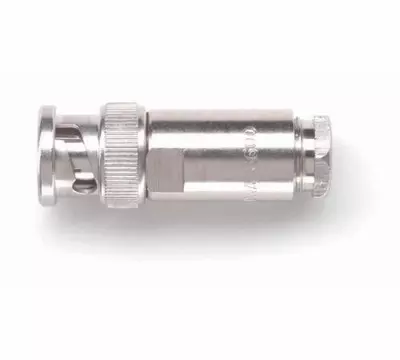

Pomona 5056 Triaxial Male 2 Lug Connector to Cable
The 5056 Triaxial male plug connector fits Belden 9222 triaxial cable, and has a 6.17mm (0.242”) O.D. It has a 50 Ohm impedance and is rated at 500V, 500 MHz with a maximum operating temperature of 165 Deg C. The body is brass with a nickel finish with a gold plated centre contact.
Materials
- Body and Fittings: Brass, Tarnish Resistant Plating
- Center Contacts: Male: Brass, Gold Plated
- Outer Contact: Beryllium Copper, Gold Plated
- Dielectric: PTFE
Specifications
- Voltage: 500 Vrms
- Impedance: 50 Ohm
- Temperature: -65° C. (-85° F.) to +165° C. (+329° F.)
- Frequency Range: DC to 500 MHz
View the datasheet for more information.
