Visarc V1-BK Helmet
Visarc V2 Helmet with chin protection
Visarc Helmet with Face Shield
V1-BK
- Description
PENTA VISARC Helmet for Arc Flash Protection with Integrated Face Shield
The VISARC helmet with face shield protect the face and head against the thermal effects of an electric arc. It is rated to be used in environments of up to 4kA at a working distance of 30cm and ideal for technicians working on Electric Vehicles - EV and PHEV and electricians.
The helmet is a modern ergonomic design, which provides optimum protection for technicians/electricians working in all type of environments. Constructed with a double shell to ensure longevity of the face shield whilst providing superior protection against arc-flash. The visor has patented technology that allows for prolonged wear without distortion and visual fatigue. The visor is also coated with a special anti-fog coating on the inside and a anti-scratch coating on the outside.
Two variants are on offer.
- The V1-BK which is an APC 1 4kA Helmet and face shield.

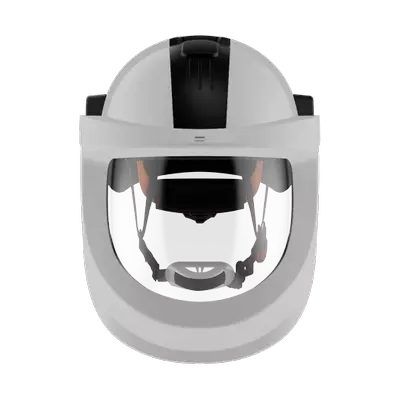

- The V2-12-LPP-BK which is an APC 2 7kA Helmet with face shield that has integrated chin and lateral protection called a BEARD. When lowered, the BEARD fits over the face shield providing protection on the bottom and sides of the face. This is a replacement for traditional textile face and neck shields, eliminating potential hygiene issues with those items.
Technical Specifications
- Main Colour: White with Black crest.
- Ventilation: Non-Vented
- Shell Material: ABS
- Helmet Harness Adjustment: Rack
- Head Size: 53-63cm
- Neckband Material: Foam
- Fixing Points: 6 Points
- Jugular Points: 4 Points
- Lens Colour: Clear
- Lifespan: 5 years from first use
- Temperature range: -10-50ºC
Also available to buy are head lamps that fit on the helmet top providing hands free torch light, fitted to the helmet. Two variants are available, one with a front facing white light only, and one with a front facing white light and a rear facing red light to allow for visual identification in low light environments. Find the lamps here: VEA Head Torch for VISARC Helmet
